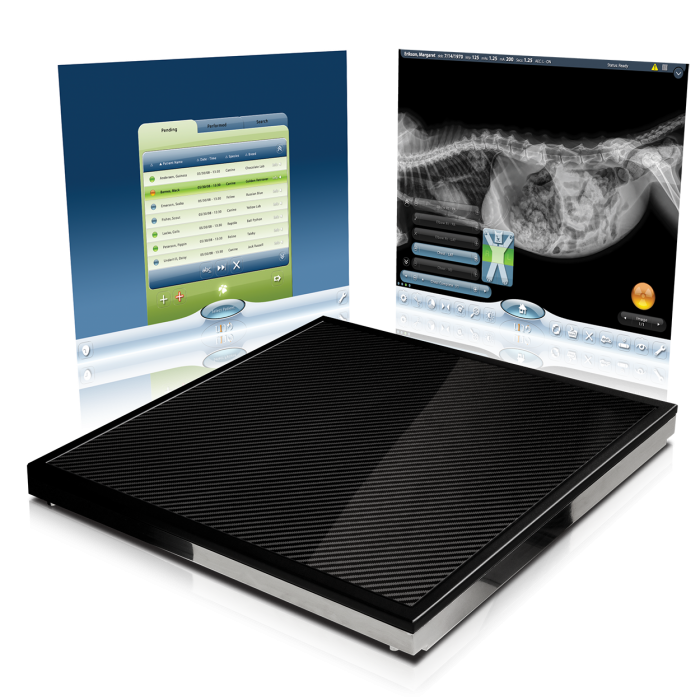

Cuattro DR HD

High Definition Digital Radiography

A smarter direction in small animal digital radiography.

  • Exceptional Images

    Delivering detail, resolution, and contrast image quality that is visibly better than Standard Definition systems.

  • Industry Leading Quality

    From the leading designers in veterinary digital radiography for more than a decade.

  • An Incredible Improvement Over Film or CR

    Avoid the high cost, retakes, over-exposure, processing failures and storage related to outdated technology.

  • Easier Workflow and Better Images

    Shorten exam times while getting superior diagnostic images.

  • Increased Profitability

    Do more exams, order more views, consult with superior images, and diagnose patients better.

  • Cloud Based Storage with Cloud DR

    Save studies to the cloud for immediate access and ability to share with anyone, anywhere.

Free Analyser Use
Lowest Test Prices
Free Warranty
Price Protection

Stop overpaying for in-clinic blood testing and analysis.

Heska’s Reset program provides veterinarians with accurate, better and faster blood testing and analysis at 35% less cost than with other competitive in-house diagnostic laboratory services.

Learn More

There's never been a better time to upgrade your radiographic suite to digital.

Lower Radiation

Top quality DR lowers radiation 20%+.

Increase X-Ray Usage

Studies show that DR increases X-Ray usage 30-50% in the first six months.

Eliminate Image Errors

Cuattro DR HD's Instant image display eliminates positioning error.

Reduce Procedure Time

Take 75% less time to get the X-Ray exam, increasing time with your patients and clients.

Simplify Workflow

Integrate with any practice management, telemedicine or PACS software.

Increase Communication

Expose, store, refer, consult, share, plan, retrieve when your images are saved to the cloud for easy access anywhere, anytime.

Our clinic purchased the Cuattro DR to replace a CR system that became obsolete in only 5 years from purchase. We wanted a high quality system that would be around for many years in the future, and we feel that has been achieved and more with the Cuattro DR. The radiographs are outstanding, with details never seen before, even with CR. Our clinic wanted a system with long service life, high quality images, ease of use, excellent technical support, and the ability to integrate into our current practice software. We feel this has been accomplished.

Dr. Brett Flathers
Lewiston Veterinary Clinic

Technical Details & Downloads

CloudDR High Definition Digital Radiography

HD Minimum Standards

  • Direct Deposition Cesium
  • 100 micron pixel size
  • HD pixel density. 18 Million (17×17)
  • HD pixel density. 15 Million (14×17)
  • Full Size Image Area (14×17 – 17×17)
  • Resolution of at least 5 lp/mm
  • 16 Bit A/D 16 Bit Grayscale Native
  • 16 Bit Multi-Frequency Tuning



CloudDR™ HD Added Benefits

  • Automatic Exposure Detection
  • Cassette Sized Form Factor
  • Windows Embedded – 64 bit OS
  • Multi-Touch User Interface
  • Cloud Based PACS Connectivity
  • Comprehensive Warranty w/ Cloud Archival
  • Software Upgrades and Updates
  • 24/7 Live Technical Support

CloudDR High Definition Digital Radiography

17×17” HD Detector Specifications:

17x17 Detectors

Sensor

  • Panel – Single substrate amorphous silicon active TFT/diode array
  • Scintillator – Direct deposition CsI:Tl
  • Pixel Matrix – 3556 × 4320
  • Pixel Pitch – 100 μm

Electronics

  • Amplifiers – Low noise ASICs with user selectable gains
  • ADC – 16 bit
  • Image Transfer Time Wired – 500 ms; Wireless: 3000 ms
  • On Board Memory – 1 GB DDR3, 4 GB SDHC card

Mechanical

  • Size – ISO 4090 for 35 cm × 43 cm (14” × 17”) cassette size
  • Active Area – True 355 mm × 432 mm
  • External Dimensions – 384 mm (w) × 460 mm (l) × 15 mm (h)
  • Weight – 3.8 kg (8.4 lbs)
  • Housing Carbon – fiber front & back

Communications

  • Status Display – OLED display with WiFi, battery, and sensor indicators
  • Wireless Data I/F – 802.11n WiFi standard
  • Wired Data I/F – GigE via optional power & communication tether
  • X-ray I/F – Integrated X-ray trigger control Automatic Exposure Detection

Imaging Performance

  • Limiting Resolution – 5 cy/mm
  • Typical MTF – 70% (1 cy/mm), 40% (2 cy/mm), 15% (4 cy/mm) for RQA5
  • Typical DQE – 75% (0 cy/mm), 60% (1 cy/mm), 40% (3 cy/mm) for RQA5

Environmental

  • Temperature: 10 – 35 °C operating
  • Humidity: 30 – 70 % RH operating (non-condensing)

Power

  • Battery – Rechargeable battery, 53.3 Wh
  • Battery Charger – External two bay charger 100-240 V AC 50/60 Hz
  • Interface & Power Unit – Optional XRpad IPU with external power supply 100-240 V AC, GigE, and X-ray I/F

14×17” Wireless HD Detector Specifications:

Sensor

  • Panel – Single substrate amorphous silicon active TFT/diode array
  • Scintillator – Direct deposition CsI:Tl
  • Pixel Matrix – 3556 × 4320
  • Pixel Pitch – 100 μm

Electronics

  • Amplifiers – Low noise ASICs with user selectable gains
  • ADC – 16 bit
  • Image Transfer Time Wired – 500 ms; Wireless: 3000 ms
  • On Board Memory – 1 GB DDR3, 4 GB SDHC card

Mechanical

  • Size – ISO 4090 for 35 cm × 43 cm (14” × 17”) cassette size
  • Active Area – True 355 mm × 432 mm
  • External Dimensions – 384 mm (w) × 460 mm (l) × 15 mm (h)
  • Weight – 3.8 kg (8.4 lbs)
  • Housing Carbon – fiber front & back

Communications

  • Status Display – OLED display with WiFi, battery, and sensor indicators
  • Wireless Data I/F – 802.11n WiFi standard
  • Wired Data I/F – GigE via optional power & communication tether
  • X-ray I/F – Integrated X-ray trigger control Automatic Exposure Detection

Imaging Performance

  • Limiting Resolution – 5 cy/mm
  • Typical MTF – 70% (1 cy/mm), 40% (2 cy/mm), 15% (4 cy/mm) for RQA5
  • Typical DQE – 75% (0 cy/mm), 60% (1 cy/mm), 40% (3 cy/mm) for RQA5

Environmental

  • Temperature – 10 – 35 °C operating
  • Humidity – 30 – 70 % RH operating (non-condensing)

Power

  • Battery – Rechargeable battery, 53.3 Wh
  • Battery Charger – External two bay charger 100-240 V AC 50/60 Hz
  • Interface & Power Unit – Optional XRpad IPU with external power supply  100-240 V AC, GigE, and X-ray I/F
